Standard Features

Optional Features

Superior production speed on certain models
Simple construction and sturdy design for long-term reliability
Weigh hopper directly suspended at two strain-gauge loadcells
Mild and Stainless Steel Materials
Special hoppers and discharge gates available for dusty products or where special hygienic conditions have to be considered
Enclosed design with removable doors for easy access into the machine
User-friendly weight Indicator
Fine-tuning capabilities
Accumulate display total discharge
Up to 30 setpoint saving available
Over and under alarm warning.

Pneumatically operated automatic calibration checked
PLC or Electric Relay system control (Single PLC could be connected to multiple Bagging Scales)
Check Weigher System for parts of Goods Quality Control
Additional External Display Accumulation of Finish and Rejected Production Goods
Our Bagging Systems could be integrated with Inventory Control and Custom Software Development.

Filling Methods

MKI scale

Suitable for :

Rice, crude sugar, bean, corn, plastic grains, organic fertilizer, feed, raw materials of chemical industry, etc.

MKI scale

Suitable for :

Tapioca, sago, mealy, grinded, granulated, raw sugar, washing powder, fishmeals,
sawdust, fertilizers, mash foods, etc.

MKI scale

Suitable for :

fine powdery, and mealy up to floury, sluggish, flushy spreading with low density not adhesive products as as fine mealy food, milk powder, wheat, plastic resins, cement, flour, etc.

Type of Weighings

Specifications
Speed	500 - 600 Bag/Hr
Average Accuracy	+- 0.2 - 1%
Capacity	5, 10 and 20, 25, 50, 60 Kg

Specifications
Speed	100 - 200 Bag/Hr
Average Accuracy	+- 0.2 - 1%
Capacity	5, 10 and 20, 25, 50, 60 Kg

Specifications
Speed	100 to 200 Bag/Hr
Average Accuracy	+- 0.2 - 1%
Capacity	5, 10 and 20, 25, 50, 60 Kg

Specifications
Speed	Up to 15 Bag/Hr
Average Accuracy	+- 0.2 - 1%
Capacity	100 - 3000 Kg

Integration Machine for Bagging Machine

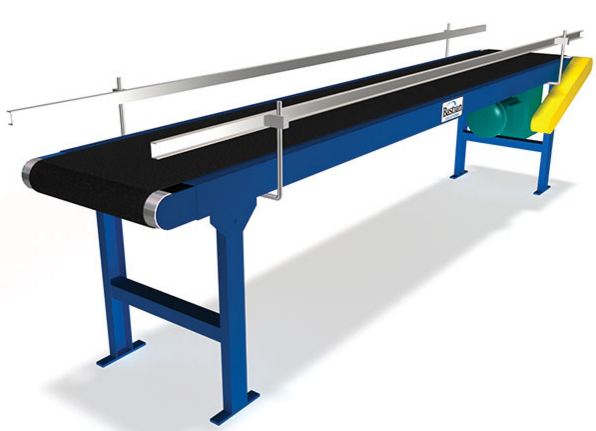

Closing Conveyor

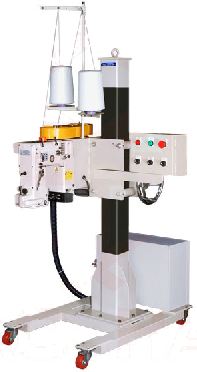

Sewing Machine

Metal Detector

Code Printer

Checkweigher
